Product Details:

Place of Origin:Guangdong, China (Mainland)
Brand Name:Diwei
CE,FCC:CE,FCC

Payment & Shipping Terms:

Minimum Order Quantity:100 Piece/Pieces
Packaging Details:Package box demensions:130*90*60(mm) Net weight:142g Gross weight:250g
Delivery Time:1-2weeks
Payment Terms:T/T
Supply Ability:30,000 Piece/Pieces per Month
Detailed Product Description

-Car GPS tracker GT06

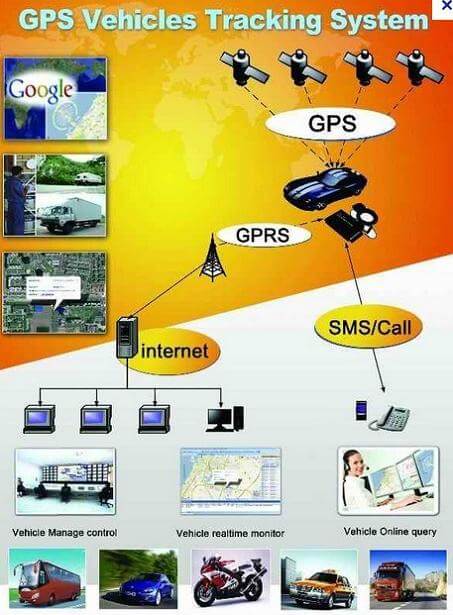

-Real-time tracking by sms or google map
-Broken oil without electricity
-Sms reply detailed address

Products Introduction:

  • GSM 850/900/1800/1900 Quad bad
  • GPS chipset with high sensitivity, High integration density
  • Built-in high sensitivity GPS antenna, extra strong receptivity
  • The only one global vehicle device built in double antenna (GSM+GPS)
  • Built-in ON/OFF power, wide voltage input range
  • Built-in vibration sensor, perform vehicle intelligent robbery protection
  • ACC detection, to upload status of vehicle operation
  • Be able to external connect cutoff relay to perform gas and electricity telecontrol
  • 3 special numbers for SOS alarm and burglar alarm
  • Be able to external connect SOS alarm button for emergency call
  • Be able to external connect microphone to perform voice monitor
  • Built-in backup battery to perform (illegal)
  • Compatible with external connection of device serial port communication



Features:

GSM

850/ 900/ 1800/ 1900 MHz

GPRS

Class12,TCP/ IP build in GSM Module

GPS

SIRF Star III

GPS Channels

20

Tracking sensitivity

-159dBm

Acquisition sensitivity

-144dBm

Locating time cost

Hot start:



Warm start:



Cold start:

Antenna

Built-in GSM quad band antenna, GPS high gain antenna

Battery

500mAh

Monitoring range

5M

Voltage input range

5-36 VDC

LED indicator

Three LED indicator: GPS-blue, GSM-green, Power-red

Dimensions

98.0(L)× 52.0(W)× 15.0(H)mm

Weight

80g

Application environment

Operating temperature: -25°C to +70°C



Operating humidity: 5% to 95% non-condensing

Mini Vehicle GPS Tracker with broken oil without electricity, vehicle state

Mini Vehicle GPS Tracker with broken oil without electricity, vehicle state

Specification:

GSM:850/900/1800/1900 MHz

GPRS:Class12,TCP/IP build in GSM Module

GPS:SIRF Atar III

GPS Channels:20

Tracking sensitivity:-159dBm

Acquisition sensitivity:-144dBm

Locating time cost:Hot start:

                   Warm start:

                   Cold atart:

Antenna:Built-in GSM quad band antenna,GPS high gain antenna

Battery:500mAh

Voice monitoring range:5M

Voltage input range:5-36VDC

LED indicator:Three LED indicator:GPS-blue,GSM-green,Power-red

Dimensions:98.0(L)×52.0(W)×150.(H)mm

Weight:80g

Application environment:Operating temperature:-25°C to +70°C

                        Operating humidity:5% to 95% non-condensing

Mini Vehicle GPS Tracker with broken oil without electricity, vehicle state

Mini Vehicle GPS Tracker with broken oil without electricity, vehicle state

Mini Vehicle GPS Tracker with broken oil without electricity, vehicle state

Mini Vehicle GPS Tracker with broken oil without electricity, vehicle state
