When it comes to monitoring your car or a fleet of vehicles, vehicle GPS trackers are the invaluable tools. Using a vehicle GPS tracking device, you can get the real-time information on the speed and location of your vehicles via text or email alerts based on parameters you set in advance. Installing vehicle GPS trackers help you to determine the conditions when your drivers go off course or speeding.



Nowadays, vehicle trackers are designed to track the location of your vehicle over a cellular network. The unique features provided by these advanced devices include,

• To-the-minute speed and location details
• Programmable text and email alerts
• Customizable programming
• Keep track of routes
• Speeding
• Traffic altercations
• Stops and more.



TK121-S from diweitrack is a cost-effective vehicle GPS tracking device that can position, monitor and control the vehicle on the position server via GPS and Internet. This help companies to manage their fleets transparently, reduce cost, maintain security, and increase efficiency.



Applications

• Car Rentals
• Automobile Risk Management
• Logistics and Transportation
• Bus Management
• Insurance
• Car Sales
• Telecommunications

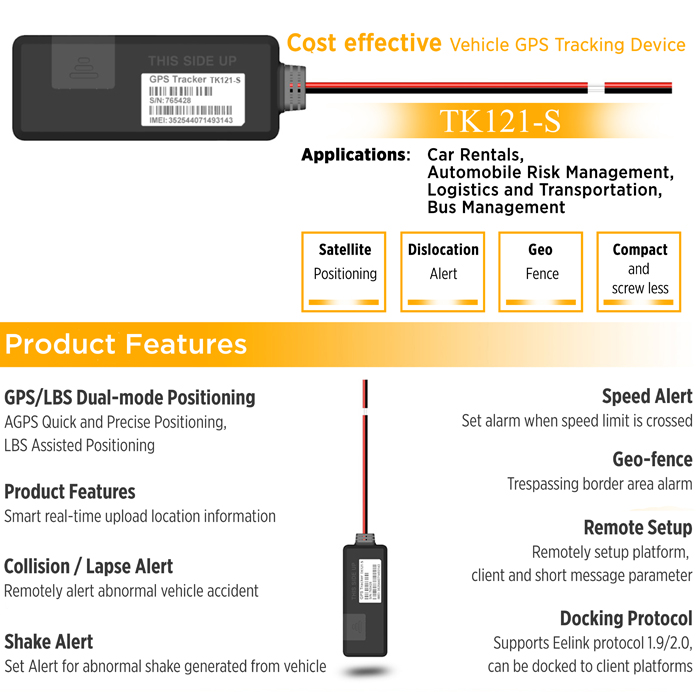

Product Features

TK121-S is designed to support quad bands 850/900/1800/1900MHz and comes with built-in quad-band GSM antenna, ceramic GPS antenna. The product also supports single positioning and feedbacks position via GPRS at setting times. It is compact, screw less, and comes with LED indicator light, blue LED for GPS and red LED for GSM. It is also equipped with advanced product features such as,

• GPS/LBS Dual-mode Positioning
• Collision or lapse alert
• Shake alert
• Speed alert
• Geo-fence
• Remote setup and more.

The TK121-S is also equipped with power disconnect alarm, low battery alarm, motion sensor, vibration alarm, collision and falling alarm, geo-fence alarm, speed and shift alarm, and more. The product requires simple customization to extend GPIO port to add extension function.



Product Installation

The TK121-S vehicle tracking device can be attached to the vehicle over the top of roof, under front dash, under bug shield, in the gap between window and hood, inside plastic bumper, under rear dash and more.

The TK121-S vehicle tracking device will provide up to one year report history of all events including the miles per hour, motion detected and stopped, as well as several other events.



Software Architecture

The TK121-S supports Diwei protocol 1.9/2.0 that can be docked to client platforms.



Key Functions

Specialized GPS functions

• GPS data reporting
• GPS status reporting
• GPS power control
• Setup and monitor geographic fences



Device Initiated Reporting

• Low Battery Condition
• User defined IP addresses

· Geo fence violation



Typical Application Industry

• Car Rentals
• Automobile Risk Management
• Logistics and Transportation
• Bus Management
• Insurance
• Car Sales
• Telecommunications



Alarm Type

• Collision/lapse alert
• Power disconnect alarm
• Low battery alarm
• Abnormal shake generated from vehicle alarm
• Speed limit alarm
• Trespassing border area alarm



Product Specifications

Dimension	85.5(L)×30.6(W)×10.8(H)mm
Color	Black
LED Indicator Light	GPS(Blue) GSM(Red)
Weight	33g
Operating Voltage	12/24/36/48/60/72 VDC (9-72v)
Working Current Standby Current	<30 mA@12V(While GPS in use) <10 mA@12V(While GPS is turned off)
Operating Temperature/Humidity	-20C~70?/20%~80%RH
GPS Band	1575MHZ
GSM Band	850/900/1800/1900MHz
Antenna	Built-in quad-band GSM antenna, Ceramic GPS Antenna
GPS Positioning Accuracy	5-15m(Depends on GPS signal strength)
Base Station Positioning Accuracy	About 200m(Depends on base station density)
Hot/Warm/Cold Startup Time	<3 seconds, <15 seconds, <60 seconds

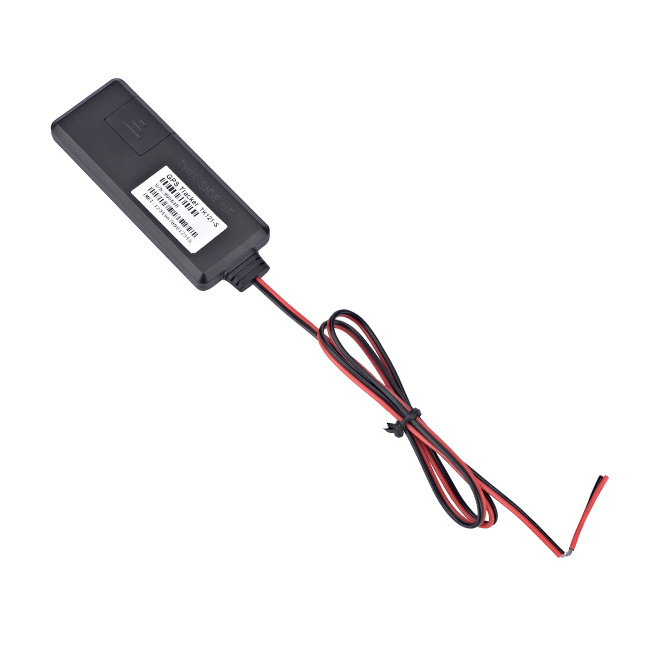

Product Pictures:
