TK112 car gps tracking device with manual gps sms gprs tracker vehicle tracking system

Larger Image : TK112 car gps tracking device with manual gps sms gprs tracker vehicle tracking system

Product Details:

Place of Origin:Guangdong, China (Mainland)
Brand Name:Diwei
CE,FCC:CE,FCC

Payment & Shipping Terms:

Minimum Order Quantity:100 Piece/Pieces
Packaging Details:Package box demensions:130*90*60(mm) Net weight:142g Gross weight:250g
Delivery Time:1-2weeks
Payment Terms:T/T
Supply Ability:30,000 Piece/Pieces per Month
Detailed Product Description

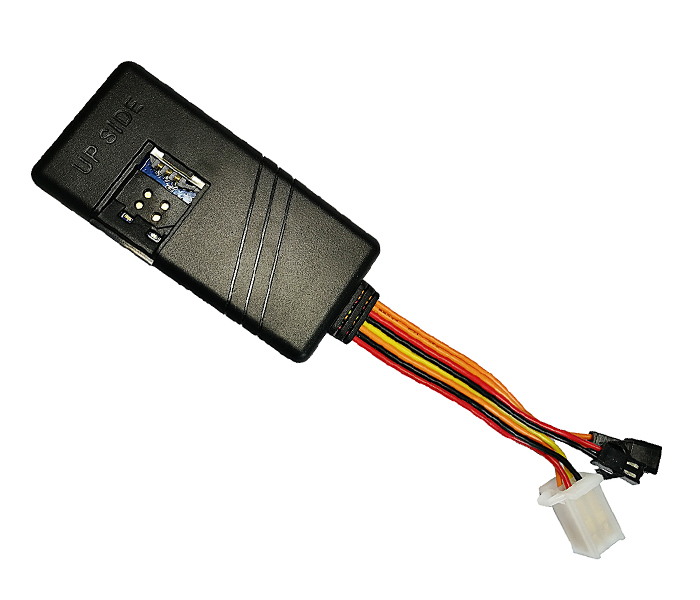

TK112 car gps tracking device with manual gps sms gprs tracker vehicle tracking system



GPS Tracker have a very wide range of industrial and civil applications, is a powerful GPS tracking device, 6-36 v voltage range, suitable for cars, motorcycles, and so on the vehicle's track positioning, remote location, cutting oil, remote mobile phone, computer checking their position at any time. At the same time also has the function of monitor and SOS distress.

      Typical application industry are: logistics enterprises, the management team, the bus management, insurance companies, power companies, oil companies, telecommunications companies, taxi companies, car sales, car rental company scale, less-than-one carload leasing companies, auto car drives, small and medium-sized enterprise team, vehicle maintenance and repair personnel, automotive technology researchers, individual owners.



Product Features

*Supports quad bands,i.e. 850/900/1800/1900MHz, worldwide used.
*Wide Input Voltage:6-36V DC.
*A-GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.

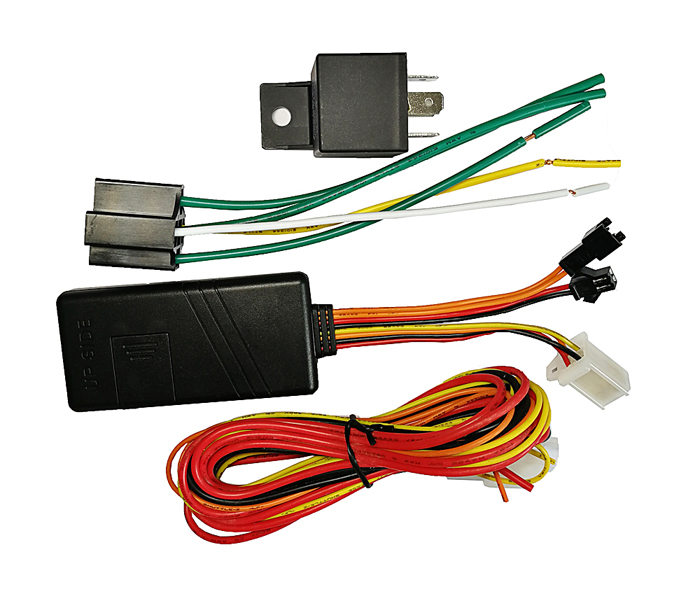

*Use relay to remotely control the vehicle..
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install



ALARM TYPE:

  • Vibration Alarm(Optional)
  • Collision / falling Alarm(Optional)
  • Speed Alarm
  • Geo-fence Alarm
  • Power disconnect Alarm
  • SOS Alarm(need SOS Cable)



Function Extension
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application



Specifications

Voltage

12VDC/24VDC/36VDC

Work current

<30mA@12V

Standby Current

<10mA@12V

GPS positioning accuracy

5-15m

GSM positioning accuracy

100m

GPS Frequency

1575MHz

GSM Frequency

850/900/1800/1900MHz

Hot/warm/cold start time

<3s,<15s,<60s

Battery capacity

200mAh

Dimensions (mm)

79.5(L)X38.5(W)X10.5(H)

Operating temperature

-20°C~70°C

Operating humidity

20%~80%RH

Net Weight

45 g
