DT20 Best Cheap hidden gps tracker for car with smallest tiny size and best Quality Stability

Larger Image : DT20 Best Cheap hidden gps tracker for car with smallest tiny size and best Quality Stability

Product Details:

Place of Origin:Guangdong, China (Mainland)
Brand Name:Diwei
CE,FCC:CE,FCC

Payment & Shipping Terms:

Minimum Order Quantity:100 Piece/Pieces
Packaging Details:Package box demensions:130*90*60(mm) Net weight:142g Gross weight:250g
Delivery Time:1-2weeks
Payment Terms:T/T
Supply Ability:30,000 Piece/Pieces per Month
Detailed Product Description

DT20 GPS Tracker Mini Car GPS Locator Real Time Tracker GSM/GPRS/GPS , this is 2019 high quality GPS Tracker products in best price, DT20 Car GPS Tracker is easy to use with ACC detect igintion, the Quality and Stability are best with low  prices.



This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.



Features

  • Support both GPS & LBS (Location based service).
  • Support SMS/GPRS/Internet Network data transmission
  • Support GPRS on-line and GPRS re-connected automatically if GPRS  drops
  • Supports ACC status checking and vehicle status notifying.
  • Supports Use relay to remote control the vehicle..
  • Supports Use SOS button for SOS call.
  • Supports Use external MIC to monitor remotely
  • Support SMS / GPRS dual-mode switching
  • Support configuration by remote terminal.
  • Support vehicle Battery voltage remote query
  • Support Turning optimization, perfect driving history management
  • Support for point-to-point, point to group, group-to-group monitoring.
  • Set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
  • Support Firmware/configuration upgrade program Over the air(OTA)



Specifications

Model

DT20

Color

Black

DIM

68.0X33.0X10.5mm

GPS Chip

MTK high sensitivity GPS Chip / Ublox 7020

Antenna

Built-in GPS ceramic antenna; GSM quad-ban antenna

Weight

35g

Network

GSM/GPRS

GPRS

Class 12, TCP/IP

Band

GSM 850/900/1800/1900Mhz

GPS Sensitivity

-159dBm

GPS Accuracy

5m

Dual model

GPS & LBS Positioning.

LBS Accuracy

About 200m (Depend Bases Density)

GPS Start time

Cold status  45s

Warm status  35s

 Hot status  1s

Memory

Save 2,000 waypoints

Voltage

9 V~80V(Model A/B)  9 V~40V(Model C)

Backup battery

Chargeable 3.7V 70mAh Polymer Li-Battery

Standby time

2hours

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +65°C

Humidity

5%--95% non-condensing



Alarms

  • Power off alarm
  • External power cut alarm
  • SOS Alarm
  • Movement alarm
  • Over speed alarm
  • ACC Alarm
  • Geo-fence Alarm
  • Vibration / Collision / falling Alarm



Applications:

•Fleet management

•Trailer management

•Workforce management

•Delivery truck dispatch

•Vehicle recovery

•Caravan security

•Heavy machinery tracking

•Logistics for temperature-controlled supply chain

PAYD (Pay As You Drive) insurance

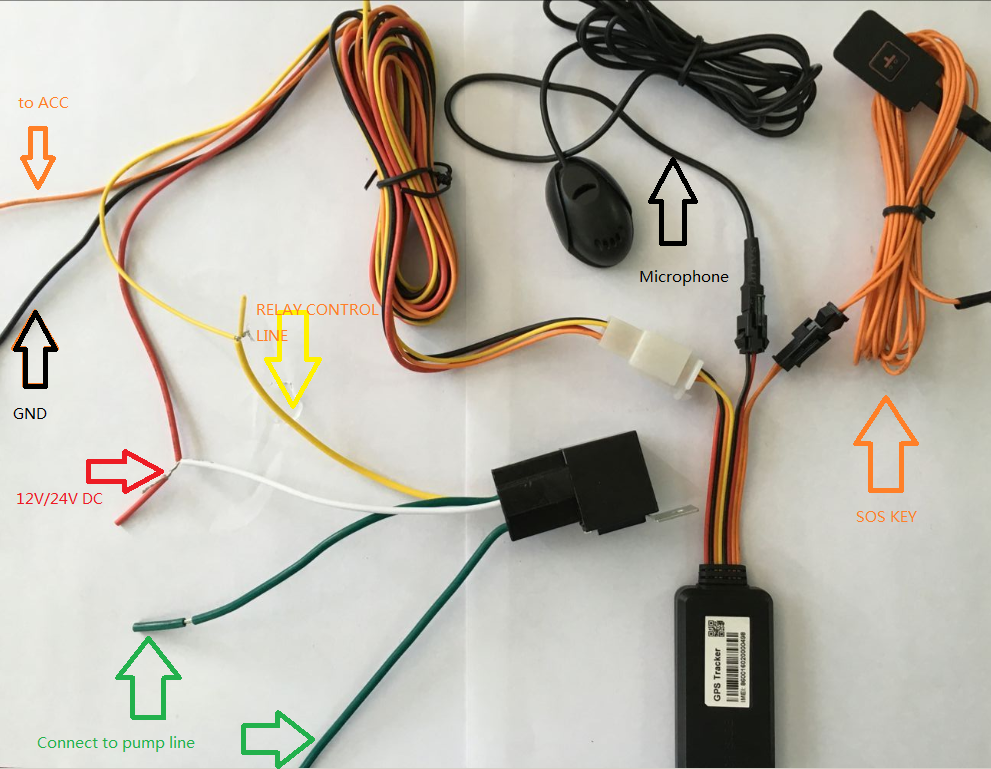

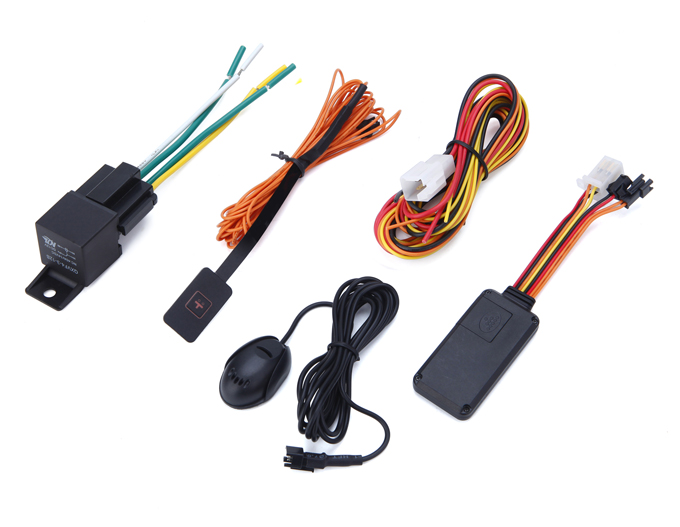

The full function of the device with all Accessories

Power Cable Harness:  4 PIN connect to vehicle battery.

Microphone (Optional): 1.5 meters for monitoring voice/conversation in vehicle

Relay (Optional): 12VDC/40A to 24VDC/40A according to vehicles

  1. ACC Detection.
  2. Disconnect fuel supply on remote command.
  3. Disconnect power supply on remote command.

SOS Key/Cable (Optional):     SOS Key/Cable for SOS Help Call



1.GPS+LBS dual tracking model support A-GPS

The high sensitive GPS chipset and AGPS mode help to acquire location in a faster and more accurate way. In case of GPS signal shielded by buildings, tunnels or garage, LBS (Location based service) would work automatically as a supplement.





2.Tele-cut off (petrol / power)

In case that your car is stolen, one solution is to send commands from web/mobile phone to stop the connection of petrol electricity. Track the location and get your car back.





3.Geo-fence

Geo-fence is a virtual border that you set up in seconds. When your vehicle enters/exits the restricted border, you would be instantly notified via text or message to tracking platform.





4.History Playback

History playback Real-time tracking on Platform & APP ,playback track in 90 days





5.Overspeed alert

DT20 allows you to set speed-limit alerts. If the tracker travels over a certain speed, it will send you a text alert. This is useful for tracking a teenage driver, so you can keep them accountable for their driving habits.





6. ACC detection

Update the vehicle’s status quickly and accurately.

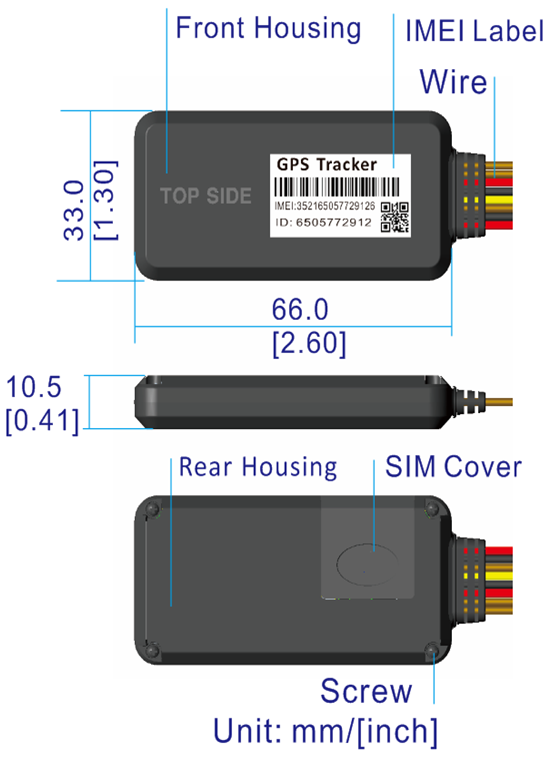

Hardware Description and Dimension

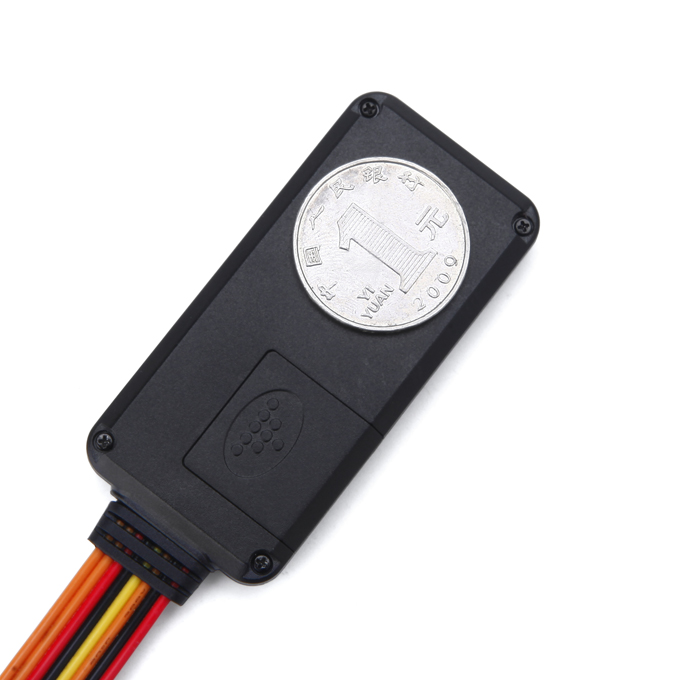

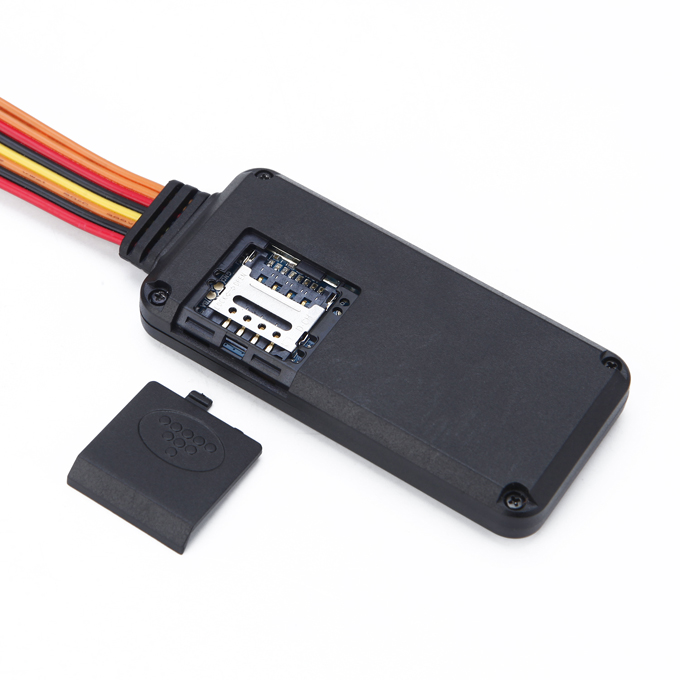

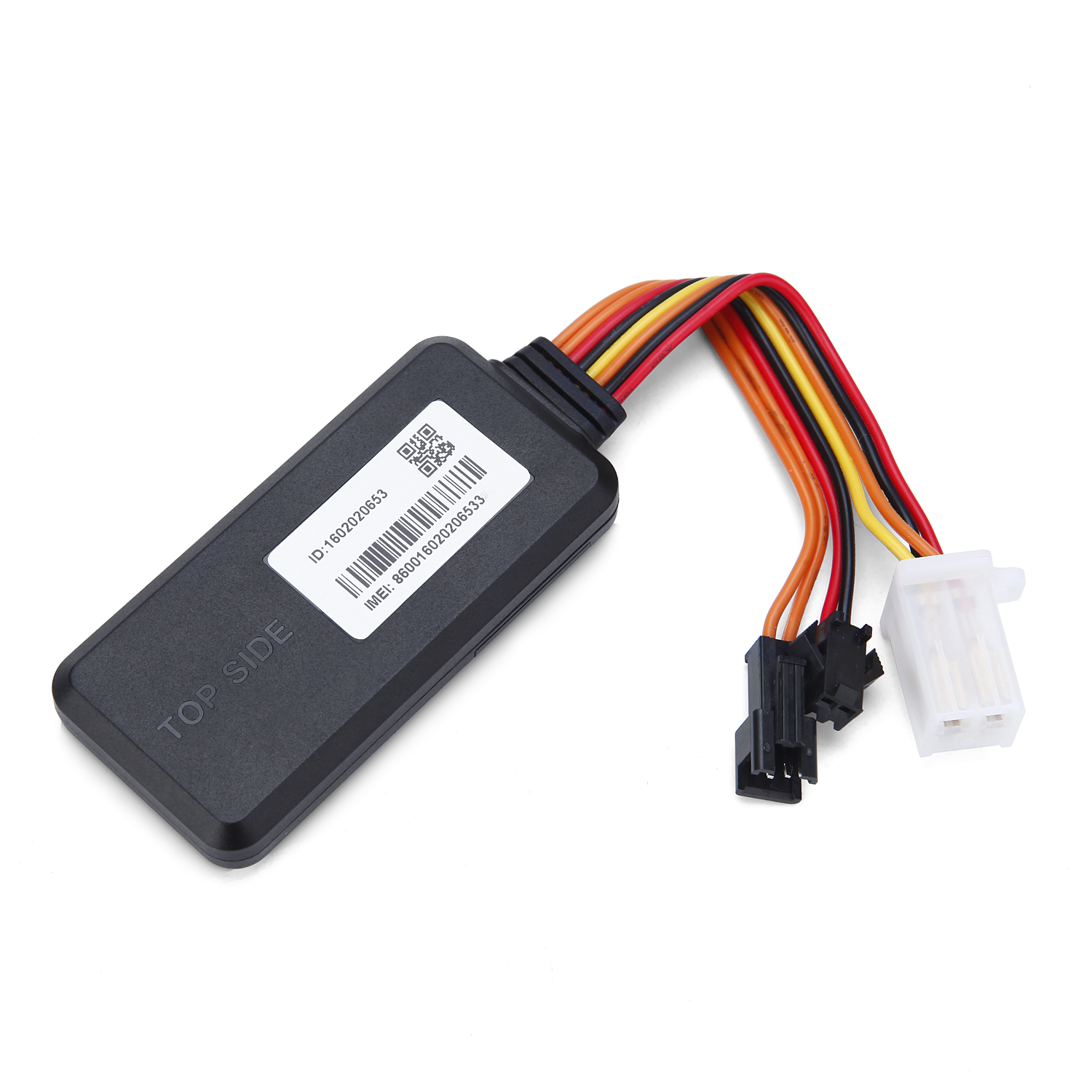

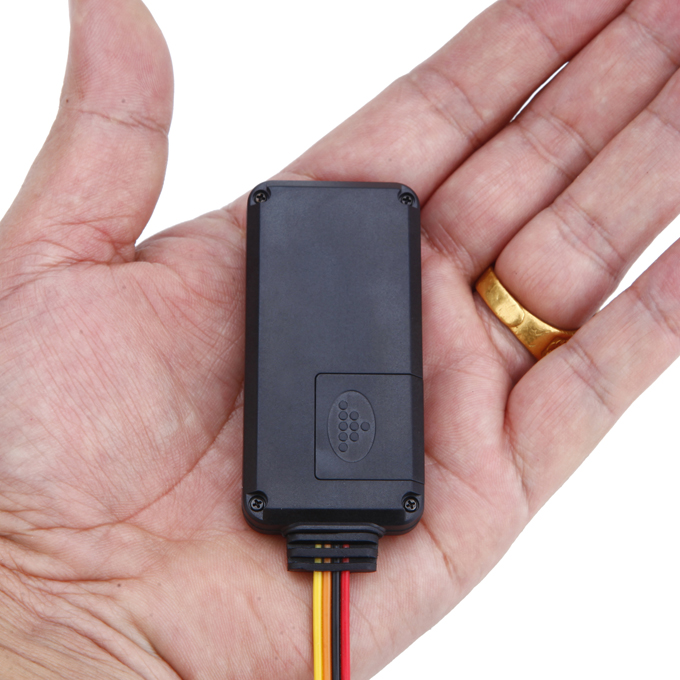

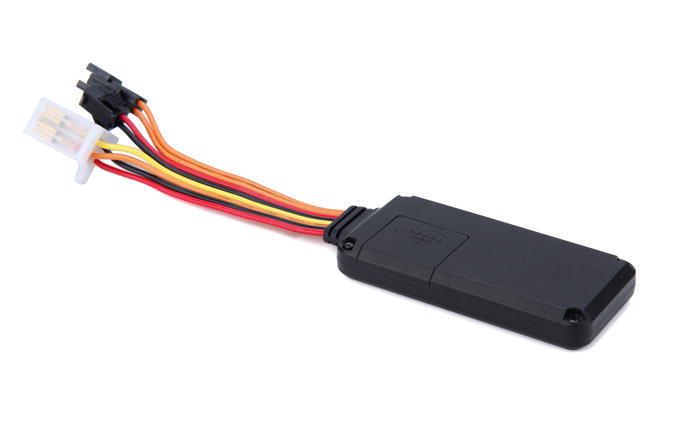

The product images:
