If you're in need of a covert GPS tracker designed to be hidden on a Car, Motorcycle, vehicle or E-bike asset, a mini GPS tracker is your best option. These small, compact devices are easily stowed wherever you need them, and the fact that they are tiny and discreet ensures that they’ll be virtually undetectable. Whether you’re monitoring the movements of a motorcycle, Car or e-bike or object, using a tiny GPS tracker allows you to track covertly.
Small GPS trackers for motorcycle, Car or e-bike are designed to assist you with keeping track of the things and people that mean the most to you. If your car is stolen or you're worried about your loved ones, real time GPS trackers in your family vehicles can give you the answers you need almost instantly. These devices can also be useful when it comes to ensuring the safety of elderly family members who want to enjoy their independence, monitoring the transportation of goods for your business, detecting the unauthorized use of company resources, and so much more. Most small GPS trackers can send reports to your home PC, laptop, and mobile devices to ensure that you are kept up-to-date 24/7 with location details.
Features
• Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world
• Wide Input Voltage:9-80V DC.
• Support SMS/GPRS/Internet Network data transmission
• Support SMS / GPRS dual-mode switching
• Support GPRS on-line and GPRS re-connected automatically if GPRS drops
• Supports vehicle positioning and tracking.
• Supports ACC status checking and vehicle status notifying.
• Supports Use relay to remote control the vehicle..
• Support configuration by remote terminal.
• Support vehicle Battery voltage remote query
• Support Turning optimization, perfect driving history management
• Support for point-to-point, point to group, group-to-group monitoring.
• Support Firmware/configuration upgrade program Over the air(OTA)
• Ip65 waterproof
Specifications
|
Model
|
DVT100
|
|
Color
|
Black
|
|
DIM
|
62.0X26.8X12mm
|
|
GPS Chip
|
MTK high sensitivity GPS Chip
|
|
Antenna
|
Built-in GPS ceramic antenna; GSM quad-ban antenna
|
|
Weight
|
24g
|
|
Network
|
GSM/GPRS
|
|
GPRS
|
Class 12, TCP/IP
|
|
Band
|
GSM 850/900/1800/1900Mhz
|
|
GPS Sensitivity
|
-159dBm
|
|
GPS Accuracy
|
5m
|
|
Dual model
|
GPS & LBS Positioning.
|
|
LBS Accuracy
|
About 100m (Depend Bases Density)
|
|
GPS Start time
|
Cold status 60s
Warm status 15s
Hot status 3s
|
|
Memory
|
Save 2,000 waypoints
|
|
Voltage
|
9 V~80V(Model A/B)
|
|
Backup battery
|
Chargeable 3.7V 70mAh Polymer Li-Battery
|
|
Standby time
|
2hours
|
|
Storage Temp.
|
-40°C to +85°C
|
|
Operation Temp.
|
-20°C to +65°C
|
|
Humidity
|
5%--95% non-condensing
|
Alarms
- Power off alarm
- External power cut alarm
- Movement alarm
- Over speed alarm
- ACC Alarm
- Geo-fence Alarm
- Vibration / Collision / falling Alarm
Applications:
•Fleet management
•Trailer management
•Workforce management
•Delivery truck dispatch
•Vehicle recovery
•Caravan security
•Heavy machinery tracking
•Logistics for temperature-controlled supply chain
•PAYD (Pay As You Drive) insurance

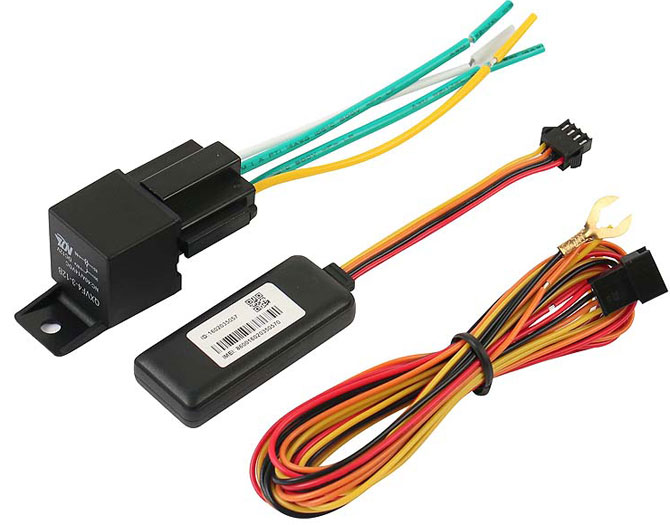

The full function of the device with all Accessories
Power Cable Harness: 4 PIN connect to vehicle battery.
Relay (Optional): 12VDC/40A to 24VDC/40A according to vehicles
- ACC Detection.
- Disconnect fuel supply on remote command.
- Disconnect power supply on remote command.
1.GPS+LBS dual tracking model support A-GPS
The high sensitive GPS chipset and AGPS mode help to acquire location in a faster and more accurate way. In case of GPS signal shielded by buildings, tunnels or garage, LBS (Location based service) would work automatically as a supplement.
2.Tele-cut off (petrol / power)
In case that your car is stolen, one solution is to send commands from web/mobile phone to stop the connection of petrol electricity. Track the location and get your car back.
3.Geo-fence
Geo-fence is a virtual border that you set up in seconds. When your vehicle enters/exits the restricted border, you would be instantly notified via text or message to tracking platform.
4.History Playback
History playback Real-time tracking on Platform & APP ,playback track in 90 days
5.Overspeed alert
DT20 allows you to set speed-limit alerts. If the tracker travels over a certain speed, it will send you a text alert. This is useful for tracking a teenage driver, so you can keep them accountable for their driving habits.
6. ACC detection
Update the vehicle’s status quickly and accurately.
Hardware Description and Dimension
