Manufacturer Vehicle GPS Car Tracker TK202 with GPS+GSM+SMS/GPRS Tracking
gps vehicle tracker have a very wide range of industrial and civil applications, is a powerful GPS tracking device, 9-40 v voltage range, suitable for cars, motorcycles, and so on the vehicle's track positioning, remote location, cutting oil, remote mobile phone, computer checking their position at any time. At the same time also has the function of monitor and SOS distress. Typical application industry are: logistics enterprises, the management team, the bus management, insurance companies, power companies, oil companies, telecommunications companies, taxi companies, car sales, car rental company scale, less-than-one carload leasing companies, auto car drives, small and medium-sized enterprise team, vehicle maintenance and repair personnel, automotive technology researchers, individual owners.
Product Features:
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:9-40V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
Alarm Types :
Vibration Alarm(Optional)
Collision / falling Alarm(Optional)
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
Function Extension:
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
Environment for use :
1.Limited working temperature:-20°C~80°C
2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof and snow-proof places.
6.Battery: 70MAh battery
Basic Specifications:
|
Content
|
specifications
|
|
DIM
|
68.0X33.0X10.5mm
|
|
Weight
|
35g
|
|
Network
|
GSM/GPRS
|
|
Band
|
850/900/1800/1900Mhz
|
|
GPS Sensitivity
|
-159dBm
|
|
GPS Accuracy
|
5m
|
|
GPS Start time
|
Cold status 45s
Warm status 35s
Hot status 1s
|
|
Voltage
|
9 V~80V(Model A/B) 9 V~40V(Model C)
|
|
Backup battery
|
Chargeable 3.7V 70mAh Polymer Li-Battery
|
|
Storage Temp.
|
-40°C to +85°C
|
|
Operation Temp.
|
-20°C to +65°C
|
|
Humidity
|
5%--95% non-condensing
|
Versions Optional
1.Voltage Optional
1) Input Voltage : 9-80v
Used widely for vehicle and other moving objects tracking: Electric vehicles, Motorcycles,Cars,Trucks.
2) Input Voltage : 9-40v
Cars,Trucks
2.Connect Cable Optional
1) 8pins cable
Connect Power cable, relay, SOS button, microphone

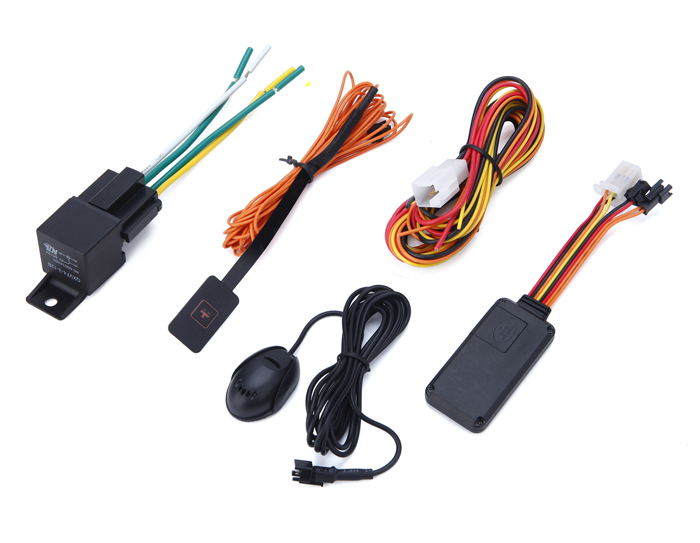

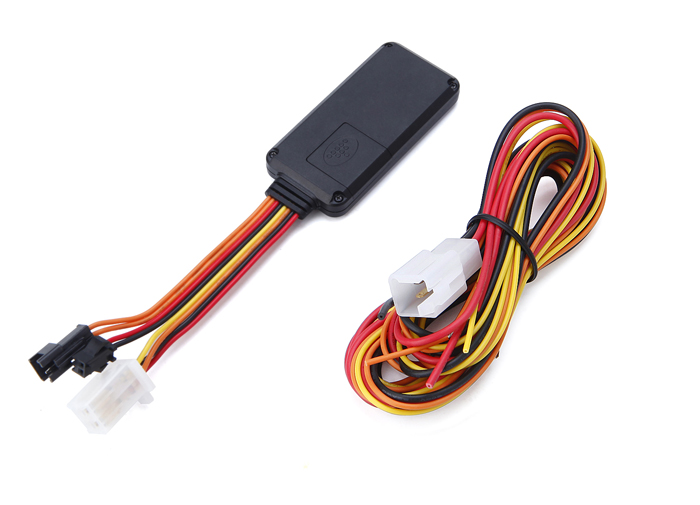

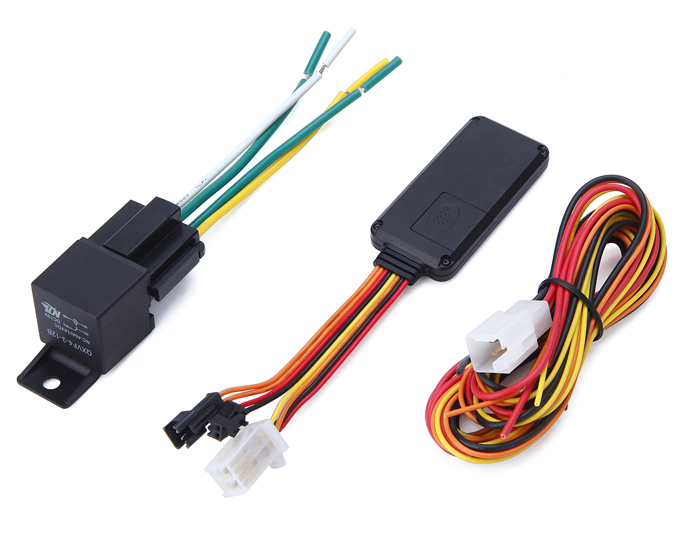

2) 4pins cable (Picture showed is 4 pin cable)
Connect Power cable, relay
