Real-time GPS Car tracker CE PTCRB FCC 4G LTE GPS Vehicle Tracker TK319-L
Application Industry
Though the TK319-L is built to meet the high demands of commercial vehicle tracking, the device works equally well as a personal and affordable GPS tracker for fleet tracking. The wide ranging applications of the TK319-L makes it easy to meet a host of GPS Vehicle tracking needs regardless of fleet size. Whether you’re a CEO of a massive truck fleet, manager of a car rental company, or a parent keeping tabs on a teenager, the TK319-L delivers reliable reports in a low-cost tracking device complete with a GPS tracking app.
- Logistics Enterprises
- Car Rental Company
- Logistics Distribution
- Intelligent Transportation
- Safety Supervision
Alarm Type
Features
- Sufficient 4Megabyte storage space for application and data storage
- A carefully embedded 150mAh battery for emergency alarm when removing main power
- Perfect for logistics enterprises, car rental companies, logistics distribution, intelligent transportation, and safety supervision
- Over The Air (OTA) application firmware updates are supported through a TFTP connection to a server
- Uses GPS (uBlox IC) satellite location in combination with LTE module of uBlox Chip LTE to report precise location.
Specifications
| GPS Chip |
UBLOX GPS, GNASS Chip |
| Antenna |
LTE Antenna Internal, |
| GPS Antenna Internal |
| GPS Positioning Accuracy |
5m-15m (Depending on GPS Signal) |
| LBS Positioning Accuracy |
~200m (Depending on density of base stations) |
| GPS Frequency |
L1, 1575.42MHz C/A code |
| Network |
LTE/FDD, WCDMA,GSM, SMS |
| Frequency bands |
FDD |
B1/ B2/ B3/ B4
B5/ B7/ B8/ B28
|
B1/ B3/ B5/ B7
B8/ B20
|
B2/ B4/ B12 |
| WCDMA |
B1/ B2/ B5/ B8 |
B1/ B5/ B8 |
B2/ B4/ B5 |
| GSM |
B2/ B3/ B5/ B8 |
B3/ B8 |
|
| SMS |
Text-data, PDU(optional) |
| Transmit Protocol |
TCP, UDP |
| GPRS |
Class 12, TCP/IP |
| LED Indicator |
GPS-Blue; GSM-Red |
| Memory |
4MB for application and data storage |
| Hot/Warm/Cold Start |
<3x, <15s, <60s |
| Built-in Battery |
Embedded 3.7V/140mAh battery for emergency alarm when removing main power |
| Standby |
4 Hours |
| I/O |
3 Digital Inputs
2 Digital Outputs
1 Analog Input
1 Microphone Socket
1 Speaker Socket
1- Wire Interface |
| Optional Accessories |
Replay
SOS Button
Microphone
Speaker
Temperature Sensor |
| Work Current |
<30 mA |
| Standby Current |
<15 uA |
| Charger |
5VDC/1A |
| IP Waterproof Level |
IP65 |
| Dimensions (mm) |
89mm x 37mm x 12mm |
| Operating Voltage |
9-72V DC |
| Environment Temperature |
-20C – 65C |
| Environment Humidity |
20% ~ 80% RH |
| Net Weight |
50g |

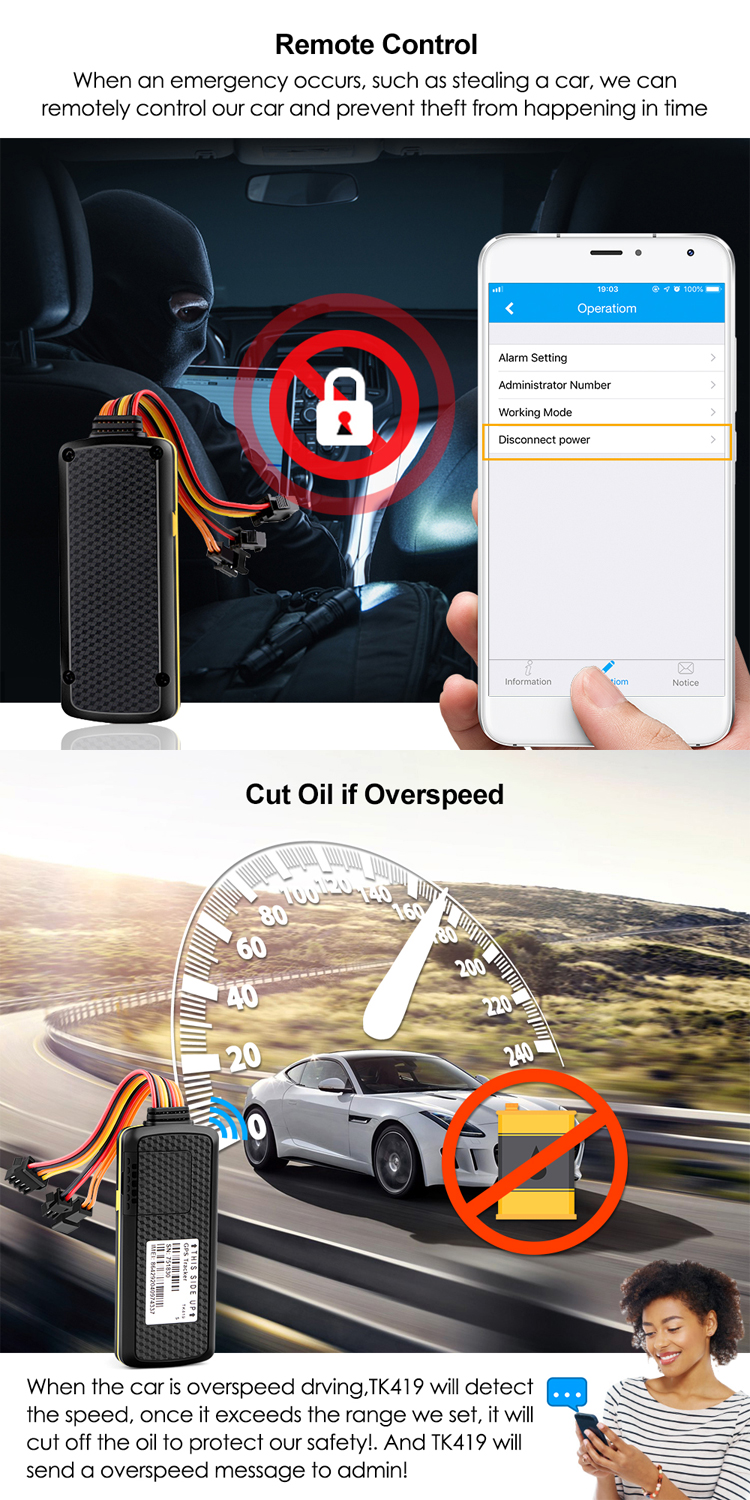

Product pictures:
Certifications:
- PTCRB
- GCF
- FCC
- IC
- R&TTE
- RCM
|
- CCC
- Giteki
- Anatel
- AT&T
- Rogers (all planned)
|
Additional Features:
- Advanced Data Reporting
- The TK319-L can initiate data reporting through several pathways including LTE/UMTS/HSPA’s SMS, TCP/IP or UDP pathways. The vehicle tracking device can also report over a physical UART connection for variable data reporting connections. Network provisioning via SIM technology is designed for both reliability and cost-efficiency. The TK319-L can be provisioned for TCP/IP, UDP and SMS data services for application command and data transactions within the 850, 900, 1800 and 1900 MHz GSM bands and UMTS/HSPA 800/850/900//1900/2100 MHz LTE: For North America 700/850/1700/1900MHz For Australia/Asia/Europe: 800/850/900/1800/2100/2600MHz bands.
Specialized GPS Functions
- Setup and monitor geographic fences (Geo-Fence)
- GPS data reporting
- GPS power control
- GPS status reporting
Device Initiated TCP/IP or UDP reporting
- Low battery condition
- Geographic Fence Violation Notifications
- Report Record Queue
- User defined IP addresses
- Schedule Recurring Events
