Delivering goods to the destination in the exact condition is significant and requires a great planning, organizing and correct execution. When it comes to transporting and delivering refrigerated goods, temperature monitoring has become an integral part. Constant temperature monitoring and maintenance is essential to ensure proper delivery of perishable goods such as frozen or chilled goods. Customer satisfaction is the ultimate concern for any business, and it is significant to make sure that they receive their product in what way they expect.
Today, GPS trackers come with an intelligent system to sense and maintain the temperature of the vehicles the same up to a pre-defined threshold. It helps to monitor real-time temperature and also provides GPS-based fleet information, with temperature control objectives. GPS vehicle trackers with temperature monitoring help you to get real-time temperature, location, status and history reports.
Advanced Temperature Monitoring
The TK119-T Vehicle GPS/LBS Tracking Temperature Monitoring Device is designed to provide accurate temperature conditions for moving your perishable or cold goods. The TK119-T delivers continuous temperature monitoring and GPS tracking to your mobile device or computer.
The TK119-T GPS/LBS temperature monitoring device provides a high-speed alert to let you know when the temperature has dropped or risen above normal.
Product Features
GPS/LBS Dual-mode Positioning
The TK119-T temperature monitoring vehicle tracker comes with dual-mode positioning with GPS for quick and clear-cut positioning, and LBS for unwavering assisted positioning.
Water and Dust-proof
The TK119-T temperature monitoring packs an IP67 grade protection water and dust proof feature that renders 100% protection against dust or water.
Other Features
- Highly sensitive temperature sensor
- Real-time positioning and temperature monitoring
- ACC status check
- Relay
- Internal battery
- Remote Setup
Alarm Type
- Collision/ lapse alarm
- Over-speed alarm
- Geo-fence alarm
- Low battery alarm
- Power failure alarm
Product Specifications
|
Dimension
|
87(L)×41.6(W)×12(H)mm
|
|
Color
|
Black
|
|
LED Indicator Light
|
GPS(Blue),
GSM(Red)
|
|
Battery
|
70mAh
|
|
Weight
|
67g (Mainframe 50g + Temperature Sensor 17g)
|
|
Operating Voltage
|
12 VDC/24 VDC/36
VDC/48 VDC/60 VDC(9-72v)
|
|
Working Current
|
25mA@12V(While
GPS in use)
|
|
Standby Current
|
5mA@12V(While GPS
is turned off)
|
|
Temperature Sensing Accuracy
|
±0.5?
|
|
Working Temperature
|
30C~80?
|
|
Working Temperature of Host
|
-20C~70?
|
|
GPS Band
|
1575MHZ
|
|
GSM Band
|
850/900/1800/1900MHz
|
|
Antenna
|
Built-in quad-band GSM antenna, Ceramic GPS Antenna
|
|
Satellite Positioning Accuracy
|
5-15m(Depends on satellite signal strength)
|
|
Base Station Positioning Accuracy
|
About 200m(Depends on base station density)
|
|
Hot/Warm/Cold Startup Time
|
<3 seconds, <15 seconds, <60 seconds
|
Benefits of Temperature Monitoring in GPS Tracking Devices
- Provides immediate notifications when temperature goes beyond threshold values and when vehicle deviates from preset route.
- Send alerts when containers are opened unscheduled stops and vehicles stop at unauthorized locations.
- With pre-defined temperature levels and temperature monitoring, provides real-time location tracking of vehicles.
- Provides accurate reports enriched with details of routes taken, stops and unscheduled stops.
- Eliminates temperature-related load rejections.
- It allows the drivers to plan the route most efficiently by including real-time data of changing road conditions and weather patterns.
- Whether the goods are fresh produce, frozen goods, or high-value assets such as pharmaceuticals, the GPS tracking device with temperature monitoring ensures your deliveries arrive accurately, reliably and safely.
Applications
- Cold chain logistics
- Food storage
- Pharmaceuticals storage
- Cold storage management
- Temperature of IoT

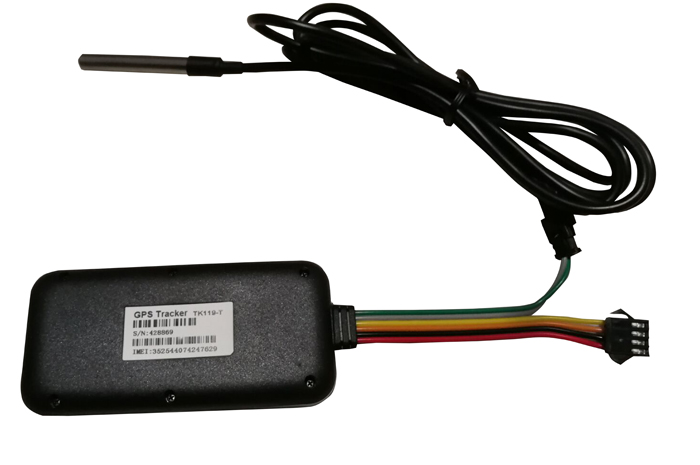

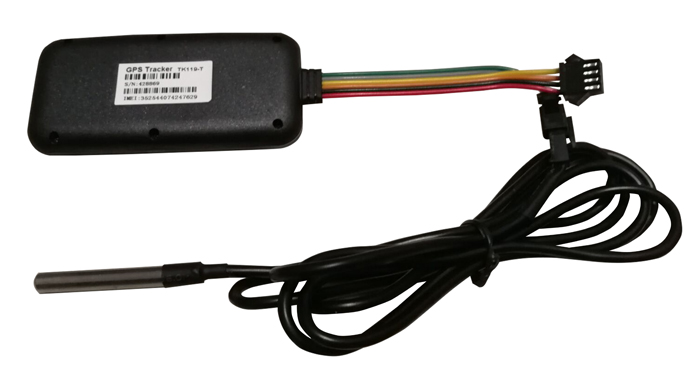

Products Pictures:
