The TK319-H 3G Vehicle GPS Tracker is an easy to use, real-time car GPS tracker with highly dedicated and accurate ultramodern 3G technology to show you live movements and transmit the location speedily via email or SMS alert.
It boasts an impressive UMTS/HSPA module for providing efficient and cost-effective high-speed mobile connectivity than any other module out there. This exquisite 3G GPS tracker can be used to monitor a single car or an entire fleet of vehicles for location, direction, speed, and traffic.
The TK319-H 3G GPS Tracker is highly equipped with external applications processor for easy and effective communication with uBlox UMTS/HSPA module by UART. This simple, yet effortlessly elegant device acts as a 3G modem and responds swiftly to AT commands issued from either a physical UART port connection or to AT commands issued to it through an SMS, TCP/IP or UDP/IP connection.
Now you can gain total control over your operations and entire business with TK319-H 3G GPS Tracker. Packs an impressive IP65 waterproof design so you no longer have to worry about rainy days. This quality, reliable, portable, and cost-effective device reduces damages or accidents to your vehicles since your drivers will know that they are been monitored.
Features
- Sufficient 4Megabyte storage space for application and data storage
- A carefully embedded 150mAh battery for emergency alarm when removing main power
- Perfect for logistics enterprises, car rental companies, logistics distribution, intelligent transportation, and safety supervision
- Over The Air (OTA) application firmware updates are supported through a TFTP connection to a server
- Uses GPS (uBlox IC) satellite location in combination with UMTS/HSPA module of uBlox’s UMTS/HSPA to report precise location.
Device initiated TCP/IP or UDP reporting
· Recurring schedule event
· Low battery condition
· Report record queue
· User defined IP addresses
· Geographic fence violation
Virtual AT command processor over SMS or TCP/IP or UDP/IP connection
OTA code update using TFTP
· 100% buffered
· Established standard protocol
· APN support with optional credential verification
Typical Application Industry
· Logistics Enterprises
· Car Rental Company
· Logistics Distribution
· Intelligent Transportation
· Safety Supervision
Alarm Type
· Vibration Alarm
· Collision / falling Alarm
· Speed Alarm
· Geo-fence Alarm
Specifications
|
GPS Chip
|
UBLOX GPS, GNASS Chip
|
|
Antenna
|
Built-in GPS Patch antenna; UMTSS/HSPA antenna
|
|
GPS Positioning Accuracy
|
5m-15m (Depending on GPS Signal)
|
|
LBS Positioning Accuracy
|
~200m (Depending on density of base stations)
|
|
GPS Frequency
|
L1, 1575.42MHz C/A code
|
|
Network
|
UMTS/HSPA, GSM, GPRS, EDGE
|
|
Frequency bands
|
UMTS/HSPA 800/850/900//1900/2100 MHz
|
|
GSM850/1900 and 900/1800 MHz Quad-band
|
|
GPRS
|
Class 12, TCP/IP
|
|
LED Indicator
|
GPS-Blue; GSM-Red
|
|
Memory
|
4MB for application and data storage
|
|
Hot/Warm/Cold Start
|
<3x, <15s, <60s
|
|
Built-in Battery
|
Embedded 150mAh battery for emergency alarm when removing main power
|
|
Standby
|
4 Hours
|
|
Work Current
|
<30 mA
|
|
Standby Current
|
<15 uA
|
|
Charger
|
5VDC/1A
|
|
IP Waterproof Level
|
IP65
|
|
Dimensions (mm)
|
89mm x 37mm x 12mm
|
|
Operating Voltage
|
9-72V DC
|
|
Environment Temperature
|
-20?C – 65?C
|
|
Environment Humidity
|
20% ~ 80% RH
|
|
Net Weight
|
50g
|
Certifications:
- PTCRB, GCF, FCC,IC, R&TTE
- RCM, CCC, Giteki, Anatel, AT&T
- Rogers (all planned)

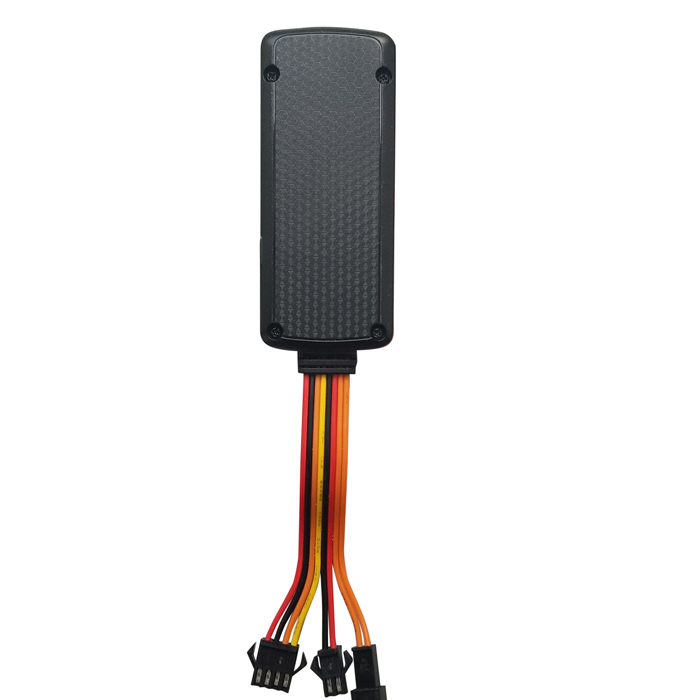

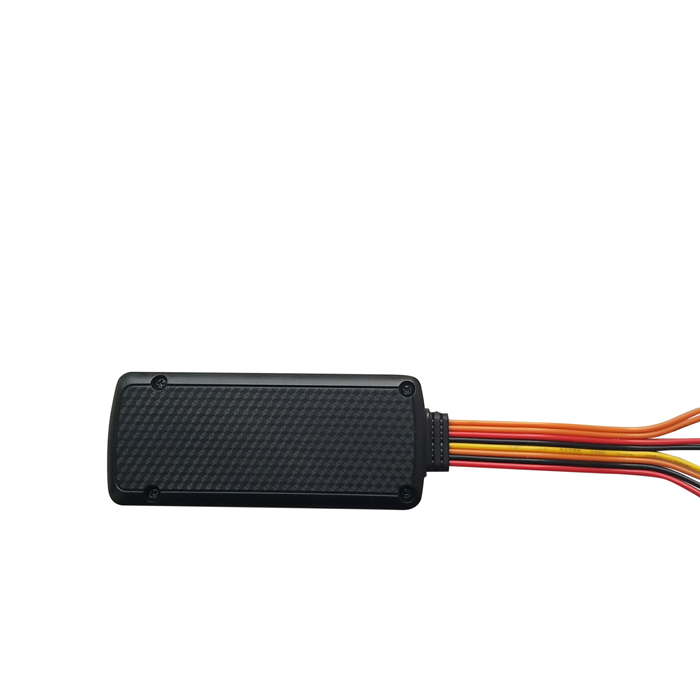

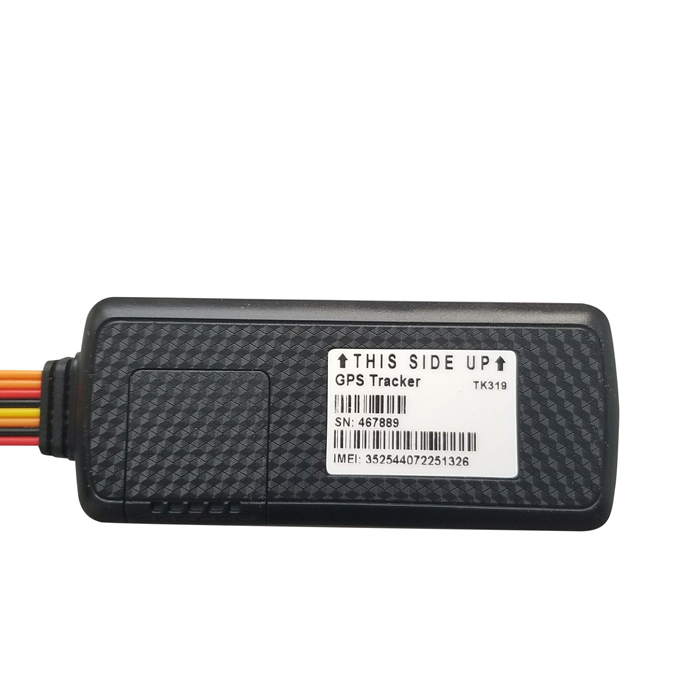

Product Pictures:
