Home 4G GPS Tracker TK319-L 4G LTE CAT-M1 Vehicle GPS Tracker For US, USA, America market

Sidebar

TK319-L 4G LTE CAT-M1 Vehicle GPS Tracker For US, USA, America market

Larger Image : TK319-L 4G LTE CAT-M1 Vehicle GPS Tracker For US, USA, America market

Product Details:

Place of Origin:Guangdong, China (Mainland)
Brand Name:Diwei
CE,FCC:CE,FCC

Payment & Shipping Terms:

Minimum Order Quantity:100 Piece/Pieces
Packaging Details:Package box demensions:130*90*60(mm) Net weight:142g Gross weight:250g
Delivery Time:1-2weeks
Payment Terms:T/T
Supply Ability:30,000 Piece/Pieces per Month
Detailed Product Description

TK319-L 4G LTE Cat M1 vehicle tracker supports full hand?over between network cells from a moving vehicle and is therefore well?suited for mobile use cases with low to medium data rate needs, such as vehicle tracking, asset tracking, telematics, fleet management and usage?based insurance. It provides accurate real-time location and driving behavior event, supports multiple sensors such as temperature sensor, humidity sensor; supports multiple external equipment for various applications, TK319-L is an extensible Vehicle tracking device for fleet management and M2M applications.

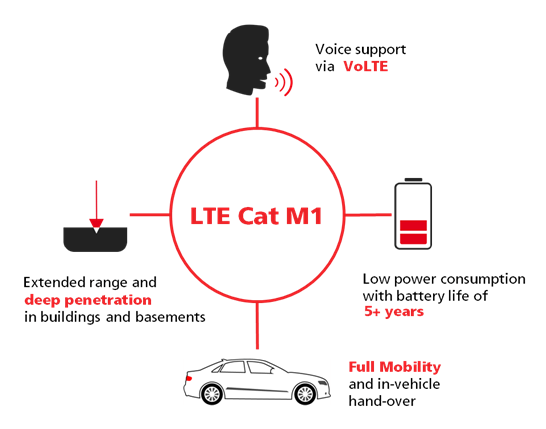

It enables longer battery lifecycles and greater in?building range, Key features include:

  • Support of voice functionality via VoLTE
  • Full mobility and in?vehicle hand?over
  • Low power consumption
  • Extended in?building range


Specifications:

GPS Chip UBLOX GPS, GNASS Chip
Antenna LTE Antenna Internal,
GPS Antenna Internal
GPS Positioning Accuracy 5m-15m (Depending on GPS Signal)
LBS Positioning Accuracy ~200m (Depending on density of base stations)
GPS Frequency L1, 1575.42MHz C/A code
Network LTE/FDD, WCDMA,GSM, SMS
Frequency bands FDD B1/ B2/ B3/ B4



B5/ B7/ B8/ B28

B1/ B3/ B5/ B7



B8/ B20

B2/ B4/ B12
WCDMA B1/ B2/ B5/ B8 B1/ B5/ B8 B2/ B4/ B5
GSM B2/ B3/ B5/ B8 B3/ B8
SMS Text-data, PDU(optional)
Transmit Protocol TCP, UDP
GPRS Class 12, TCP/IP
LED Indicator GPS-Blue; GSM-Red
Memory 4MB for application and data storage
Hot/Warm/Cold Start <3x, <15s, <60s
Built-in Battery Embedded 3.7V/140mAh battery for emergency alarm when removing main power
Standby 4 Hours
I/O 3 Digital Inputs
2 Digital Outputs
1 Analog Input
1 Microphone Socket
1 Speaker Socket
1- Wire Interface
Optional Accessories Replay
SOS Button
Microphone
Speaker
Temperature Sensor
Work Current <30 mA
Standby Current <15 uA
Charger 5VDC/1A
IP Waterproof Level IP65
Dimensions (mm) 89mm x 37mm x 12mm
Operating Voltage 9-72V DC
Environment Temperature -20?C – 65?C
Environment Humidity 20% ~ 80% RH
Net Weight 65g




Key applications:

Fleet Management School Buses Fleet, Taxi Fleet, Dispatching Fleet, Car Renting Fleet, Logistic Fleet, Public Affair Fleets, Ambulance Fleet, Mortgate Vehicle Management, Dangerous Cargo Monitoring, Auto Station Solution, etc.
Insurance Telematics Stolen Vehicle Tracking and Recovery
M2M Application Cold Chain, Food Chain, Restaurant Supply, Enterprises Equipment Management, etc

Key applications:


Product Features:

  • 2G/3G/4G covers globally universal frequency bands
  • The Module has received PICRB, GCF, FCC, IC, Anatel, AT&T, CCC certifications
  • GPS/LBS dual positioning, and support A-GPS
  • Intelligent real-time tracking, and report the location
  • Temperature sensor can be connected to detect temperature in real time(optional)
  • ACC Detection, Remote Fuel ShutoffOver speed Fuel Shutdown (New)
  • GPIO extension, can be extended to Serial Port
  • Adopting the new Eelinktech Protocol 2.0 (TCP), the firmware can be upgraded remotely (OTA)
  • Possessing a certain waterproof IP65 and dustproof performance
  • With PC web page, mobile APP query, SMS inquiry and remote settings




Product Function:



  • Temperature alarm(optional)
  • Power-off alarm
  • LBS positioning
  • A-GPS
  • ACC detection
  • SOS Aalrm
  • Overspeed fuel shutoff
  • OTA update



          Geofences

Set‘safe zones’for your car, so every time it leaves one of these zones you receive a text.



       Overspeed Alert

Receive a text every time your car goes over a certain speed. Perfect for curbing a crazy P-plate driver.



          Shock Sensor

Get an instant notification as soon as your vehicle has been in a crash. Read about my friend and a crash with a kangaroo here.



         Live Tracking

Go online to view live tracking of your vehicle as well as past reports, overspeed alerts and many more reports.



           Tow Alarm

Receive a text as soon as your car is being towed. this saved my mate Tony a whole bunch of grief and frustration.



    Remotely Disable Car

With this more advanced feature you can remotely disable your car, so if anyone has taken it you can immediately shut it off.



       Alarm Notification

Receive a text when your car alarm goes off. You don’t always notice your car alarm going off, but you’ll never miss the text.



       Low Power Alerts

Receive a text in-case the device accidentally unhooks from the battery, so you’re not left in the wind if your car is towed or stolen.



     Logging Out of Range

Your GPS data will be logged to the 4B Memory inside the tracker when the vehicle is out of range or there is no signal.




ADVANTAGES:

SOS/Over-speed/Geo-fence Alert Temperature Monitoring
Remote Engine/Door Control Accurate Real Time/LBS Tracking
Wireless Firmware Upgrade(OTA) Two Way Communication
One Wire ®Protocol Supported Multiple External Equipment Supported
Built-in 3 axis G-sensor for Motion

Detect

4M Internal Backup Log Saving
